VUpoint

Risco VUpoint

Integrate Your Alarm and Cameras

Risco have made it easy to combine alarm and cameras in one easy to use system. When the alarm is triggered, the VUpoint cameras spring to life and send a clip to the Risco cloud for your viewing. Instant alarm verification will always be at your fingertips.

VUpoint Brochure

PoE Turret Camera

WDR
Starlight Technology
ePoE
SD card inside
IP67
Max. IR LEDs 50m

PoE Bullet Camera

WDR
Starlight Technology
ePoE
SD card inside
IP67
Max. IR LEDs 40m

WiFi Pan/Tilt Camera

Color HD
Day/Night
Pan-Tilt rotation via the app
Built-in Mic & Speaker
SD card inside
Max. IR LEDs 10m

WiFi Bullet Outdoor Camera

Color HD
Day/Night
WiFi
IP67
SD card inside
Max. IR LEDs 30m

Camera Technical Specifications

Image Sensor: 1/2.8” 2MP STARVISTM CMOS
Lens: 3.6mm/F1.6
FDV-H: 87°
Day/Night: ICR
WDR: 128dB
Max IR Distance: 50m
Video Compression: H.265+/H.265 H.264+/H.264
Max Resolution: 1080P (1920×1080)
Frame Rate: 60fps@1080P
Multi-Streaming: 3 streams
Audio In/Out: Built-in Mic
Memory Slot: Micro SD, Max. 128GB
Ingress Protection: IP67
Working Temperature: -30°C~+60°C
Power: DC12V PoE (802.3af) (Class 0) Max. 5.5W

Image Sensor: 1/2.8” 2MP STARVISTM CMOS
Lens: 3.6mm/F1.6
FDV-H: 87°
Day/Night: ICR
WDR: 128dB
Max IR Distance: 40m
Video Compression: H.265+/H.265 H.264+/H.264
Max Resolution: 1080P (1920×1080)
Frame Rate: 60fps@1080P
Multi-Streaming: 3 streams
Memory Slot: Micro SD, Max. 128GB
Ingress Protection: IP67
Working Temperature: -30°C~+60°C
Power: DC12V PoE (802.3af) (Class 0) Max. 6W

Image Sensor: 1/3” 1.3MP CMOS
Lens: 3.6mm/F2.0
FDV-H: 72.2°
Day/Night: ICR
Max IR Distance: 50m
Video Compression: H.264
Max Resolution: 1.3M (1280×960)
Frame Rate: 30fps@1.3MP
Multi-Streaming: 2 streams
Pan/Tilt: Yes
WiFi: Yes
Audio In/Out: Built-in Mic & Speaker
Memory Slot: Micro SD, Max. 128GB
Working Temperature: -10°C ~ +45°C
Power: DC5V 2A Max. 12.95W

Image Sensor: 1/3” 1.3MP CMOS
Lens: 2.8 mm/F2.0
FDV-H: 92°
Day/Night: ICR
Max IR Distance: 30m
Video Compression: H.264
Max Resolution: 1.3M (1280×960)
Frame Rate: 30fps@1.3MP
Multi-Streaming: 3 streams
WiFi: Yes
Memory Slot: Micro SD, Max. 128GB
Ingress Protection: IP67
Working Temperature: -10°C ~ +50°C
Power: DC12V Max. 4.6W

Write a description for this tab and include information that will interest site visitors. For example if you are using tabs to show different services write about what makes this service unique. If you are using tabs to display restaurant items write about what makes a specific dish particularly worthwhile or delicious.

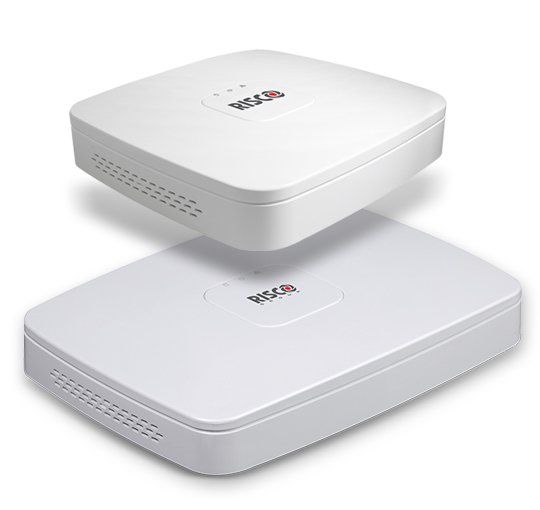

Want the Ultimate Integrated Recording System?

The VUpoint NVR is fully integrated with you Risco Cloud making video verification, live view, recording and playback easy and pain free. If you are wanting to install video and alarm this is the perfect solution for you.

Button
Button

NVR Technical Specifications

Main Processor: Quad-core embedded processor
Operating System: Embedded LINUX

IP Camera Input: 8 Channel
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA

Internal HDD: 1 SATA III Port, Up to 6 TB capacity
HDD Mode: Single

Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Interface: 1 RJ-45 Port (10/100Mbps)
Ethernet Port: 1 Independent 100Mbps Ethernet Port
PoE: IEEE802.3at/af
Smarthphone: IPhone, iPad, Android
Interoperability: ONVIF 2.4, SDK, CGI

Interface: 1 HDMI, 1 VGA
Resolution: HDMI: 3840×2160, 1920×1080,
1280×1024, 1280×720, VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity: 2ch@4K(30fps)/8ch@1080P(30fps)
Multi-screen Display 8CH: 1/4/8/9

Power Supply: DC48V/1.5A
Power Consumption 8 Channels: NVR: <8.3W (Without HDD), PoE: Max 25.5w for single port, 80w in total

CE: EN55032, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B

Compression: Smart H.265+/H.265/Smart H.264+/H.264
Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/
1.3MP/ 720P etc.
Record Rate: 80Mbps
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Record Mode: Continuous, Motion
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Dimensions 8 Channels: Smart 1U, 270mm× 204.7mm ×45.7mm (10.6” x 8.1” x 1.8”)
Net Weight 8 Channels: 0.65kg (1.43 lb) (without HDD)
Gross Weight 8 Channels: 1.8kg (3.97 lb) (without HDD)
